Build Custom Search in ADF 11g

Although ADF 11g provides us with declarative search component for a search functionality, in many cases it still cannot satisfy the business requirements. Here I am presenting a way to build a custom search page without using build-in search component in ADF 11g. This example was built under HR schema to search employees using tables: employees, departments, jobs, locations, countries. Normally, we will catch the user input in managed beans and send the user input back to our model, and explicitly run the executeQuery() against the iterator that binds to the results table.

here I did something differently....
I am using another VO with transient attributes to catch the search criteria user inputs, and send these inputs into the VO iterator which binds the search results table. So when user inputs search criteria, the changes will retain in a VO Row and I will user getter method to catch the changes and send the changes to the VO that I can run executeQuery() to do the search.

To begin, I have wrote the query for the search:
select  EMP.EMPLOYEE_ID,
        EMP.LAST_NAME || ', ' || EMP.FIRST_NAME Name,
        EMP.EMAIL,
        EMP.PHONE_NUMBER,
        EMP.HIRE_DATE,
        JOB.JOB_TITLE,
        EMP.SALARY,
        MGR.FIRST_NAME || ' ' || MGR.LAST_NAME Manager,
        DEPT.DEPARTMENT_NAME,
        LOC.CITY || ' ' || COUNTRY.COUNTRY_NAME ADDRESS
from    employees emp,
        jobs job,
        employees mgr,
        departments dept,
        locations loc,
        countries country
where   EMP.JOB_ID = JOB.JOB_ID
  AND   EMP.MANAGER_ID  = MGR.EMPLOYEE_ID (+)
  AND   EMP.DEPARTMENT_ID  = DEPT.DEPARTMENT_ID (+)
  AND  DEPT.LOCATION_ID = LOC.LOCATION_ID (+)
  AND  LOC.COUNTRY_ID = COUNTRY.COUNTRY_ID (+)
  AND  EMP.EMPLOYEE_ID = :1
  AND  UPPER(EMP.FIRST_NAME) LIKE '%' || UPPER(:2) || '%'
  AND  UPPER(EMP.LAST_NAME) LIKE '%' || UPPER(:3) || '%'
  AND  UPPER(EMP.EMAIL) LIKE '%' || UPPER(:4) || '%'
  AND  EMP.HIRE_DATE = TO_DATE(:5, 'YYYY-MM-DD')
  AND  JOB.JOB_TITLE = :6
  AND  EMP.SALARY BETWEEN :7 AND :8
  AND  UPPER(MGR.FIRST_NAME || ' ' || MGR.LAST_NAME) LIKE '%' || UPPER(:9) || '%'
  AND  DEPT.DEPARTMENT_NAME = :10
  AND  LOC.CITY = :11
  AND  COUNTRY.COUNTRY_NAME = :12

The where clause will not included in the VO and will be attached to the query at run time.
First, create our criteriaVO. Choose option "Rows populated programatically, not based on a query".
Then manually create attribute in this VO, note you have to choose option "updatable: always", because we will create an empty row on this VO in order to hold user inputs.



After creating all the attributes in CriteriaVO, we will have to create the ResultVO which is the base VO for the search result data model. Since it's a search query and we are not about to edit the data, we will use read-only VO based on query option.


In the query panel, we will just put the query without where clause, since we will attach the where clause at run time with other search parameters and user inputs.


After creating the two VOs, we will create the initiate Search method and execute search method in Application Module.

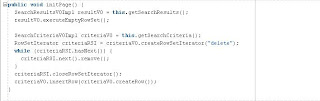

The first method we created was the initPage() method. One thing worthy to note, to avoid the resultsVO gets executed when the page renders, we use VO method executeEmptyRowSet() to reduce the rendering time.



We also inserted an empty row in the CriteriaVO because when the page renders, we will have to let the user to input in the search critiera. In the meantime, I have created a RowSetIterator at run time to delete any existing rows left over in the previous user inputs (if user want to do a reset, clear the search inputs and do an another search)

The second method is the executeQuery() method:

There is one important method in executeSearch we used: "setNestedSelectForFullSql(false)" to suppress the inline view for expert mode queries. Please check Steve Muench's article about it.

Then you will need to expose the two methods to the client interface.

Next would be the UI implementation part.

I have created a bounded task flow for the search functionality. The default activity is the initPage() method we defined in the application module, which will avoid ResultsVO automatic query and create an empty row in CriteriaVO. After execution of initPage(), is Employee search page fragment.


In the Search page, we have search criteria, search results table, and a search button and reset button.



The Search button binds with the action method "executeSearch" and reset button binds with "initPage" action method.

Please check the action methods bind to the button in the actionListener: #{bindings.executeSearch.execute} and #{bindings.initPage.execute}.

If let's say, we don't have actionListener binding to #{bindings.initPage.execute}, instead we will have a navigation flow to initPage() action activity in the task flow for the reset button. This will lead to unexpected situations that the reset button will not work (not clearing out the user input in the search criteria). This is because the execution sequences between action and actionListener in the button property inspector.

The final search page looks like this:





We can use "#{bindings.SearchResultsIterator.estimatedRowCount}" to show number of rows that have been returned against the search.

 Downlink for the applications: CustomEmpSearch.zip
